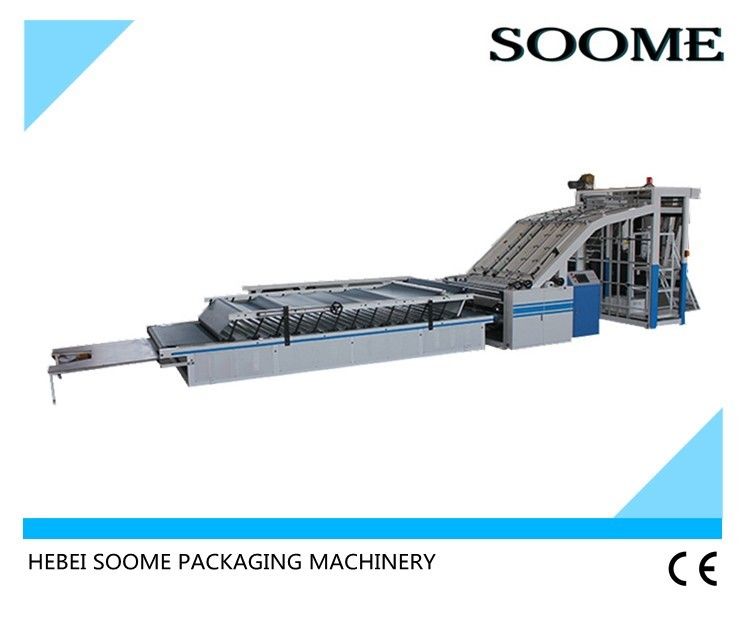

High Speed Flute Laminating Machine Semi Auto 1400 Lift Type Power 6KW
Thanks for using our semi auto laminating machine. Before installation and using, pls read this instruction carefully. This system composed of PLC, HMI, other switch and buttons and contactor etc. electric components.Strong ability, steady performance and easy operation.
Performance of the machine:
1. The face paper can put up the 1.5m,When feeding the face paper,the bottom paper can automatic up at the same time.It makes the feeding paper is more easily and freely.
2. Adopts the air-breathing auto feeding the bottom paper according to the manual feeding the face paper speed, automatic synchronization tracking.
3. Adopt the new perspective elasticity front guide positioning.Positioning accuracy is high,The bottom paper will never be advanced.
4. The whole machine adopt the PLC control system,circuit system running smoothly,And automatically display fault alarm.
5. Automatic glue supplementary system,automatically added the loss glue amount.And match the recycling of glue,avoid the waste of glue consumption.
6. Metering roller linear velocity scientific design,ensure uniform glue quantity,at the same time,to avoid rejection glue when high-speed running.
7. Pressure roller unilateral regulation,convenient and quickly.
8. Shaking control the wash water roller lift and the down,convenient cleaning the upper rubber roller and the down rubber roller,cleaning it convenient and quickly.
9. Adopt the humanized design counter,convenient record every day’s workload.
Technological parameter:
| Model |
SMTM-BTS1300 |
SMTM-BTS1400 |
SMTM-BTS1500 |
SMTM-BTS1600 |
| Max size of cover face |
1100*1300mm |
1250*1400mm |
1250*1500mm |
1250*1600mm |
| Min size of cover face |
360*360mm |
360*360mm |
360*360mm |
360*360mm |
| Economic speed |
0-80 Pcs/min |
0-80 Pcs/min |
0-80Pcs/min |
0-80Pcs/min |
| Laminating precision |
±1 |
±1 |
±1 |
±1 |
| Power |
6 kw |
6 kw |
6.5 kw |
6.5kw |
| Overall dimension |
8.8*1.95*1.5m |
8.8*2.05*1.7m |
8.8*2.25*1.5m |
8.8*2.25*1.5m |
| Weight |
About 3t |
About 3t |
About 3.5t |
About 3.5t |
Our Service:
1. OEM service are available.
2. Trade Manager, Skype, QQ, email are all available. Mobile is abailable for 24 hours.
3. To solve problems by picuters and videos.
4. Engineers service abroad is offered when needed.
Remark: Normally our machines are uneasy to broken under our strict quality control. If any problems happened, we will send you our manual and video you need to solve the problems. When necessary, our engineer can go abroad to maintain.
