Name: 2500mm Touch Screen Corrugated Sheet Cutter Machine Online Cardboard Packing Line
Brand: SOOME
SKU: SMBD-2500
Rating: 4.9 (173 reviews)

Home Products Corrugated Cardboard Production Line

2500mm Touch Screen Corrugated Sheet Cutter Machine Online Cardboard Packing Line

Product Details:

Place of Origin:	China
Brand Name:	SOOME
Certification:	CE
Model Number:	SMBD-2500

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Contact
Packaging Details:	Wooden case or plastic film;LCL or 1*20'Container
Delivery Time:	45 Days
Payment Terms:	L/C, T/T
Supply Ability:	20 Sets/Month

Contact Now

Detailed Product Description

Speed:	80m/min	Min.paper Cut Length:	200mm
Max.paper Cut Length:	2000mm	Usage:	Corrugated Line Sheet Cutting Machine
Cutting Accuracy:	±1.5 Mm	Voltage:	380V Or As You Need
Upper Roller:	Rubber Roller	Lower Roller:	Anilox Roller
Highlight:	2500mm corrugated sheet cutter machine , touch screen corrugated sheet cutter machine , touch screen corrugated sheet cutter

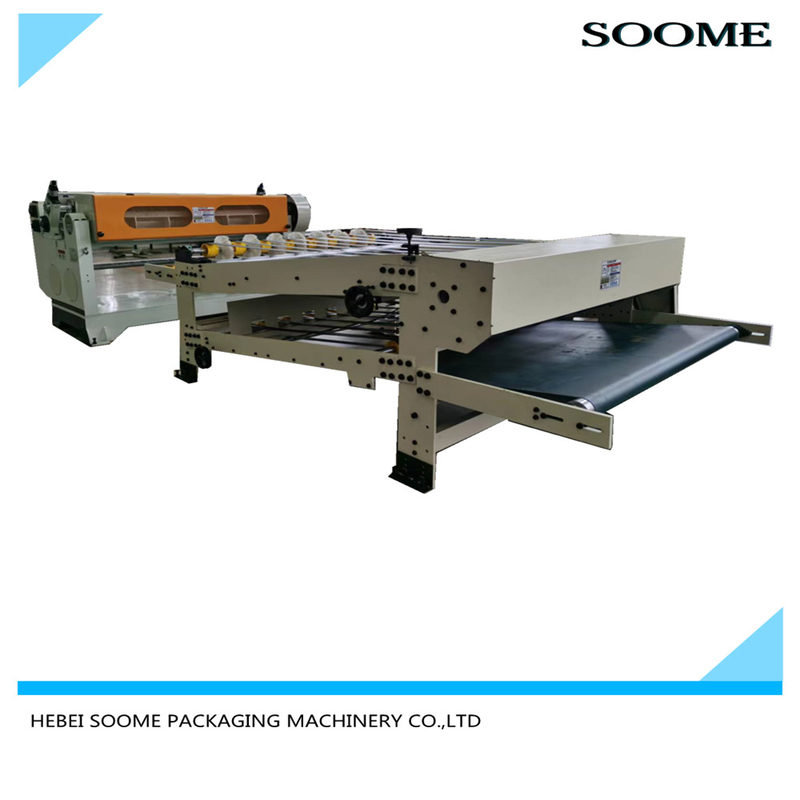

2500MM Corrugated Sheet Cutter Machine Online Cardboard Packing Line

1 . The sheet cutter adopts light dynamic balance cutter shaft to make the machine run more stable, and the blade is inlaid with front steel blade.

2 . Feeder paper roller upper roller is the rubber roller,lower roller is the anilox roller.

3 . Main machine wallboard adopt high grade gray cast iron, high strength, strong vibration resistance.

4 . INVIT Frequency conversion controller, 5.7 inch color touch screen display.

5 . Length :50 mm—9000mm, Cutting accuracy :±1.5 mm.

Technical parameters:

Work wide size	2500mm
Machine speed	80m/min
Min.paper cut length	200mm
Max.paper cut length	2000mm
Paper cut accuracy	uniform ±1.5mm

Power motor and electrical parameters:

1 . Paper cutter shaft motor power:4.0KW ( frequency control )

2 . Feeder paper rubber roller motor power:2.2KW( frequency control )

2500mm Touch Screen Corrugated Sheet Cutter Machine Online Cardboard Packing Line 0
