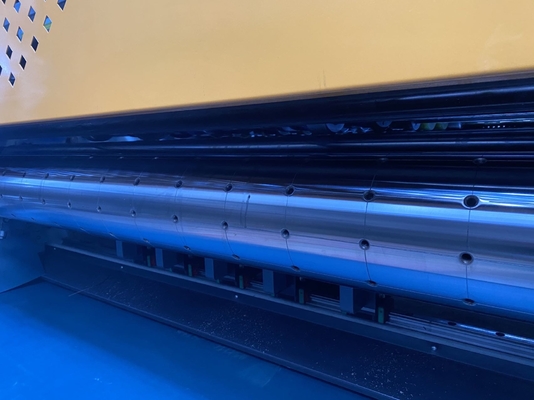

Mini Carton Flexo Printing Machine 4 Color Slotting Die Cutting
We are biggest manufactory for corrugated packaging machinery in North of China. Our main produce including complete corrugated paperboard production line, Hydraulic Mill Roll Stand, High Speed Single Facer, N. C Cut Off Machine , N.C Slitter Scorer Machine.Folder Gluer Machine, Rotary Slotter Machine ,flexo printer slotter and die cutting machine, carton making converting machine. Our company have perfect technology and to develop design according to our customer’s requirement. Our machinery with perfect quality guarantee system .Our engineers have rich experience of installation and to service for our customers all over the world.
mini carton box slitter slotter machine adopt combination chain paper feed, is the corrugated board, cutting Angle, trimming and grooving, indentation, punch, several process integrated comprehensive equipment, its main characteristics for high production efficiency, simple operation, convenient, and low failure rate.
Main technical parameters:
| Machine model of small carton box flexographic printer slotter machine |
unit |
HL-LYK-1426, 1chain feeding unit,1-6 color printing unit can optional,1 slotting unit can optional |
| width of machine inside |
mm |
2800 |
| Printing roller diameter(contain plate thickness) |
mm |
480 |
| Max. feeding size |
mm |
2700x1400 |
| Min. feeding size |
mm |
positive knife 400×720
negative knife 400 ×740 |
| Max. printing area |
mm |
2600x1400 |
| skip feeding size |
mm |
2700x1600 |
| Slot width x slot depth |
mm |
7x350(increase the blade, increase the slot depth) |
| Min. Slot distance |
mm |
positive knife 170×170×170×170
negative knife 260×90×269×90 |
| Design speed |
pcs /min |
60 |
| Economic speed |
pcs /min |
0-60 |
| Suitable paperboard thickness |
mm |
1.5-11 |
| Phase adjustment |
mm |
Electric 360 ° |
| Printing precision |
mm |
±0.5 |
| Slotting precision |
mm |
±1.0 |
| Main motor power |
kw |
15 |
| Gross power |
kw |
26 |
| Outer size(L*W*H) |
mm |
5800X6600X2000 |
| Total weight of machine |
about kg |
16000
|
Machine features and features:
1 Whole machine electric parts was choice the domestic famous brand, good quality and steady.
2 Complete machine baffle and important parts used the temper for decrease the metal internal force; and that parts are made by high precision processing center and grinded by digit controlled grinder.
3 All the transmission axles and rollers are made by high-quality steel, and processed through temper and dynamic balance ; plated with rigid chrome and grinded surface.
4 All the transmission gears was used the 45# alloy steel, which is grinded after heat-treatment, and it was made by rubbing, it still maintains the high topping precision.
5 The whole machine undergoes the spray lubrication, intuitionist show setting, setting the double oil pipe balance system.
