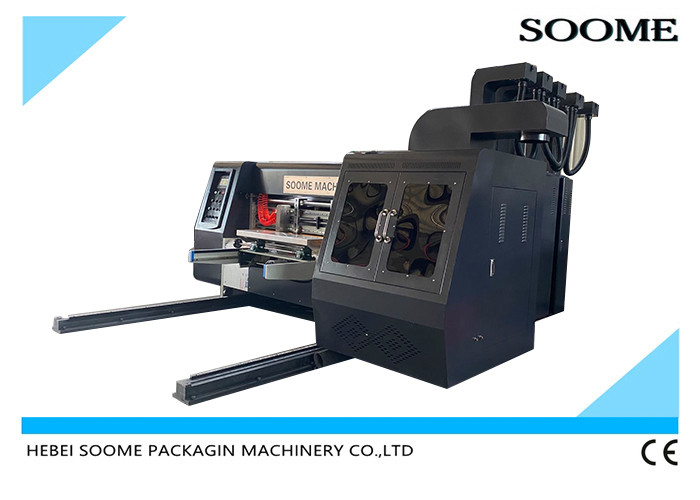

Mini Carton Flexo Printing Machine 4 Color Slotting Die Cutting
We are biggest manufactory for corrugated packaging machinery in North of China. Our main produce including complete corrugated paperboard production line, Hydraulic Mill Roll Stand, High Speed Single Facer, N. C Cut Off Machine , N.C Slitter Scorer Machine.Folder Gluer Machine, Rotary Slotter Machine ,flexo printer slotter and die cutting machine, carton making converting machine. Our company have perfect technology and to develop design according to our customer’s requirement. Our machinery with perfect quality guarantee system .Our engineers have rich experience of installation and to service for our customers all over the world.
mini carton box slitter slotter machine adopt combination chain paper feed, is the corrugated board, cutting Angle, trimming and grooving, indentation, punch, several process integrated comprehensive equipment, its main characteristics for high production efficiency, simple operation, convenient, and low failure rate.
Main technical parameters:
| Machine model of small carton box flexographic printer slotter machine |
unit |
HL-LYK-1426, 1chain feeding unit,1-6 color printing unit can optional,1 slotting unit can optional |
| width of machine inside |
mm |
2800 |
| Printing roller diameter(contain plate thickness) |
mm |
480 |
| Max. feeding size |
mm |
2700x1400 |
| Min. feeding size |
mm |
positive knife 400×720
negative knife 400 ×740 |
| Max. printing area |
mm |
2600x1400 |
| skip feeding size |
mm |
2700x1600 |
| Slot width x slot depth |
mm |
7x350(increase the blade, increase the slot depth) |
| Min. Slot distance |
mm |
positive knife 170×170×170×170
negative knife 260×90×269×90 |
| Design speed |
pcs /min |
60 |
| Economic speed |
pcs /min |
0-60 |
| Suitable paperboard thickness |
mm |
1.5-11 |
| Phase adjustment |
mm |
Electric 360 ° |
| Printing precision |
mm |
±0.5 |
| Slotting precision |
mm |
±1.0 |
| Main motor power |
kw |
15 |
| Gross power |
kw |
26 |
| Outer size(L*W*H) |
mm |
5800X6600X2000 |
| Total weight of machine |
about kg |
16000
|
Machine features and features:
1. Main body panel is made of high quality cast iron, the large processing center, finishing and become.
2. Main drive gear for helical gear, a steel 45 # steel, fine plating, grinding high frequency quenching
3. Drive roller for high quality 45 # steel, the grinding, hard chromium plating processes and become.
4. Electrical appliances: the main parts for schneider, Siemens and other imported components, its stability is greatly increased, main motor using electromagnetic speed regulating motor, high stability
5. the blade from Qingdao production, using high-quality front steel material, the forging, high frequency quenching processes, finishing and become, internal tooth shape design (month teeth) knife sharp, durable.
6. This machine, can admire punch, playing clasp hand device, also can match free edition die cutting device ( die cutting and slotting in one unit ).
