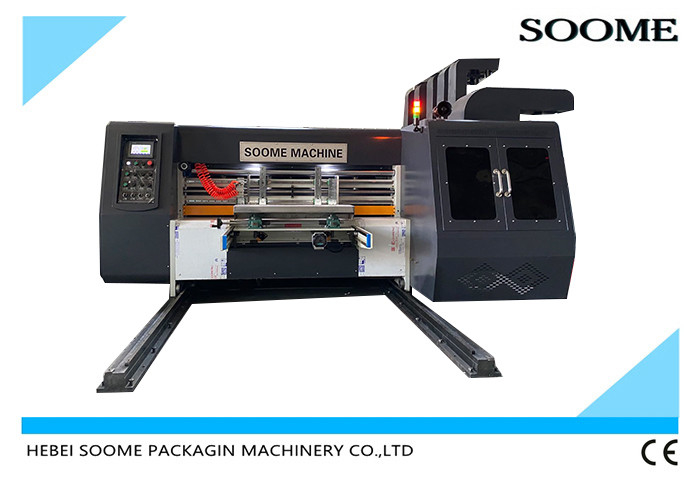

Mini Box Making Printing Machine Automatic Feeder Computer Controlled
1.This machine adopts chain feeding type,bilateral blocking(side lay) positioning,to ensure that feed paper accurately.
2.Each unit uses electric to separate and combine,pneumatic locking,pneumatic lift plate, automatic ink distributing,pneumatic brake fission positioning.
3.Print and die cut adopts structure of planetary gear type,electric 360°adjustment,digital display.
4.The lubrication way adopt double oil pump,automatic spray,circulating oil supply,keep the balance of the oil level,greatly improve the operation precision and the service life.
5.slotter unit is electric adjust,put the button can adjust box length width size
Main technical parameters:
| Machine model of small carton box flexographic printer slotter machine |
unit |
HL-LYK-1426, 1chain feeding unit,1-6 color printing unit can optional,1 slotting unit can optional |
| width of machine inside |
mm |
2800 |
| Printing roller diameter(contain plate thickness) |
mm |
480 |
| Max. feeding size |
mm |
2700x1400 |
| Min. feeding size |
mm |
positive knife 400×720
negative knife 400 ×740 |
| Max. printing area |
mm |
2600x1400 |
| skip feeding size |
mm |
2700x1600 |
| Slot width x slot depth |
mm |
7x350(increase the blade, increase the slot depth) |
| Min. Slot distance |
mm |
positive knife 170×170×170×170
negative knife 260×90×269×90 |
| Design speed |
pcs /min |
60 |
| Economic speed |
pcs /min |
0-60 |
| Suitable paperboard thickness |
mm |
1.5-11 |
| Phase adjustment |
mm |
Electric 360 ° |
| Printing precision |
mm |
±0.5 |
| Slotting precision |
mm |
±1.0 |
| Main motor power |
kw |
15 |
| Gross power |
kw |
26 |
| Outer size(L*W*H) |
mm |
5800X6600X2000 |
| Total weight of machine |
about kg |
16000
|
Machine features and features:
1. The whole machine electrical appliances and computer software are all internationally renowned brands, Chint, Siemens, Taiwan Delta. The quality is stable and reliable; the man-machine interface, computer order management, easy to operate.
2. The whole machine wall panel and important parts are treated with aging treatment, tempering to eliminate metal internal stress; CNC grinding machine grinding processing is made by high-precision machining center.
3. The whole machine shaft and roller are made of high-quality steel, high-precision computer dynamic balance correction, grinding processing, and hard chrome plating on the surface.
4. The whole transmission gear is made of 40Cr alloy steel, quenched and treated, hardness
HRC58~62; After grinding, 6 grade precision, ensuring high precision of long-term use.
5. The transmission part of the whole machine (shaft and tooth connection) adopts keyless connection (expansion sleeve) to eliminate the connection gap and is suitable for long-term high-speed operation of high torque.
6. The whole machine transmission bearing, the main transmission parts are all domestic famous brand:C&U, easy maintenance and longer service life.
7. The whole machine lubrication system adopts spray type automatic lubrication and is equipped with double oil level oil level balance system.
8. The whole machine adjusts the preset position function, feeding, printing, die cutting, automatic zero return, memory automatic reset.
9. The working gap adjustment of the whole machine is quickly adjusted by using a wrench-free wrench, and the adjustment is quick and convenient.
10. The main engine adopts frequency conversion control, which makes the start up and operation more stable and energy-saving.
technology can save energy consumption.
