Name: 5 Ply Low Speed Corrugated Cardboard Production Line 220v
Brand: Soome
SKU: SM-2200
Rating: 4.6 (116 reviews)

Home Products Corrugated Cardboard Production Line

5 Ply Low Speed Corrugated Cardboard Production Line 220v

Product Details:

Place of Origin:	Hebei China
Brand Name:	Soome
Certification:	CE
Model Number:	SM-2200

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	contrat
Packaging Details:	film or plastic
Delivery Time:	30 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	2set per year

Contact Now

Detailed Product Description

Name:	Cardboard Product Line	Usage:	Cardboard
Function:	Corrugated Cardboard Making	Speed:	250m/min
Automatic Grade:	Automatic Grade	Voltage:	220/380/440V
Condition:	New Condition	Warranty:	1 Year
Highlight:	low speed corrugated cardboard production line , 5 ply corrugated cardboard production line , corrugated cardboard production line 220v

5 Ply Low Speed Cardboard Product Line

Europe Market 1800/2200/2500 JS Brand Cottugation Product Line

Use for corrugated paperboard making machine

Second hand high speed corrugated line

specification

Equipment name

UN IT

QT Y

Remark

RG-4-1060

Triple preheater

Cottugation Product Line

roller ￠1060mm,including pressure container certificate.Electric adjustment wrap angle.Wrap angle can adjust the paper preheat area in the range of

360°.

GM-30

Double glue machine

(heavy

type)

Cottugation Product Line

Glue roller diameter 320mm.Frequency motor drive, PLC control. Glue quantity PCL automatic adjustment,HMI touch screen display.

TQ-I

Conveyor bridge

set

Cottugation Product Line

200mm main beam channels, independent inverter motor drive pull paper feed, adsorption

tension.Electric correction.

NCBD

NC thin blade slitter scorer

Cottugation Product Line

Tungsten alloy steel, seven knives twelve lines, zero-pressure line type. Schneider servo computer automatically discharge knife, suction outlet width automatically adjusted.Closed electric control box,

plus air conditioning dehumidification

NC-30D

Double NC cutter helical knives

Cottugation Product Line

Full AC servo control, energy storage brake, helical blade structure, oil-immersed gears,10.4-inch touch screen display.Closed electric control box, plus air

conditioning dehumidification

NC-DL

Double Automatic large down stacking

machine

Cottugation Product Line

Five sections of the high-strength belt conveyor, frequency loop control,automatic points precision, row single-cycle 20 seconds,stacking length1800mm, HMI touch screen.

ZJZ

Automatic Glue station

set

Cottugation Product Line

Customers -owned pipeline . Glue configuration is composed by carrier tank,main tank,storage tank,

Main Structure and Features

Tools up-loaded or lower-loaded.

Servo robot for tool set-up, ensuring quick and accurate tool positioning.

Variable frequency drive ensures accurate synchronization with the line

Automatic regrinding device keeps tool-edge sharp and heat volatilization, prolong the knife lifespan.

3 scoring profiles enable up to three scoring profiles (point to point, male to female, point to flat); Motorized switchover between scoring profiles, motorized scoring depth adjustment to meet different caliper

Friendly computer interface featuring convenient and easy operation.

4 outs

Main Technical Data

Available width: 2200mm

Designed speed: 350m/min

Min. slit-to-slit distance: 180mm

Min. score-to-score distance: 0mm

Tool set-up precision: ±1mm

Tool setup: 12s

Options

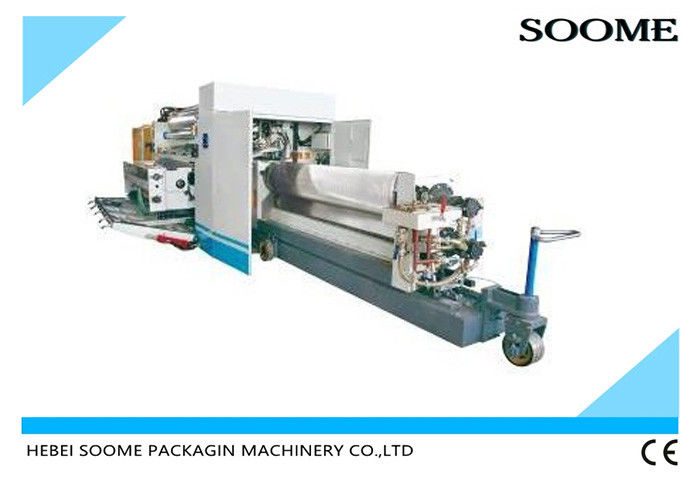

5 Ply Low Speed Corrugated Cardboard Production Line 220v 0
