2200 Alloyed Steel Thin Blade On Line Type Slitter Scorer Corrugated

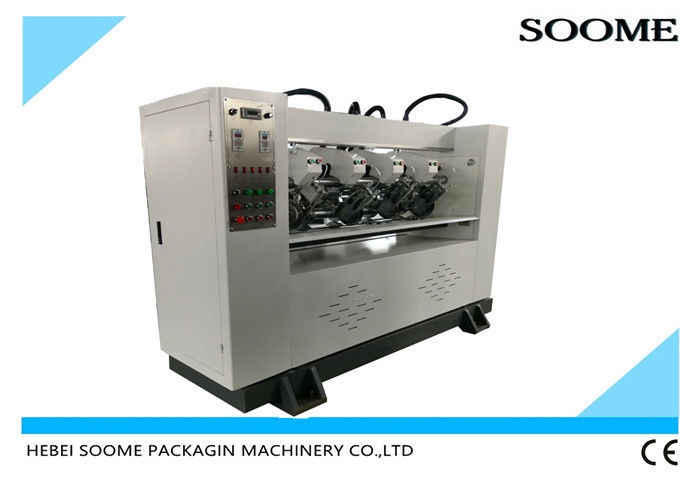

SMBD-DDJY 2200 Alloyed Steel Thin Blade On Line Type Slitter Scorer Machine

1.Product overview:



Electrically adjust the working distance of the longitudinal cutter to lock automatically.

Alloyed steel thin-blades,sharp and long life of over million meters ,auto sharpening.

Scoring part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.

Motorized body left-right rectification 200mm.



2.Technical index:



Model	1600		1800		2200
Efficient width	1650mm		1850mm		2250mm
Min. slitting width	120mm
Min. creasing width	30mm
Blade model	Φ200*122*1.3mm
Creasing roller model	(up)φ152mm(down)φ152mm
Correction range	±100mm
QTY of blade/scorer	4/6		5/8		6/10
Depth of creasing	0-12mm
Design speed	80 m/min
Power	4kw	5.5kw		7.5kw



Specification:



Contactor/air switch	Schneider	France
Blade scheduling motor	WANSHSIN gear motor	Taiwan
Blade scheduling drive	Delta frequency converter	Taiwan
Blade and scorer control	Delta frequency converter	Taiwan
Blade and scorer motor	YONGSHUN frequency converter	China
Pneumatic	Tianao	China
Blade	Tungsten steel	China
Synchronous belt	SUBAK	Japan
Button	CHINT	China
Bearing	HRB	China

Slitting Department

Thin knife slitting creasing machine adopts thin knife slitting, after grinding wheel after sharp blade makes cutting the cardboard edge finishing, flattening phenomenon is minimal, improve quality and appearance of cardboard overall quality especially in favor of cardboard printing after feeding, thereby reducing waste, improved quality of the carton.
Sharpener with manual and automatic switching of two ways, according to the time or paperboard running speed selection sharpener and stop grinding time. To keep the blade sharp and make cardboard cut smooth and tidy;
Adjust the blade from electric, pneumatic automatic locking fixation. Manually adjust the pressure line width. Using separate single-handedly carrying knives structure, according to the number of cardboard cut switch; program the machine wear and tear caused by different cutter size can be adjusted.
Features: The plastic shaft feed, after cutting, and then plastic shaft feed, the last pressure line forming, after the process used when the clear indentation depth of cut paper with high steel knife blade drive belt drive, when replacing blades can be quickly set up for using plastic shaft pull paper, pull the paper toward the same equipment than the one higher than a chip.



SOOME established in 1995. Specialized in developing and manufacturing the automatic, high speed, precise and good quality corrugated machines. Our target to the customer :





1. Supply the best quality product

2. Ensure the delivery time

3. Good after sales service
