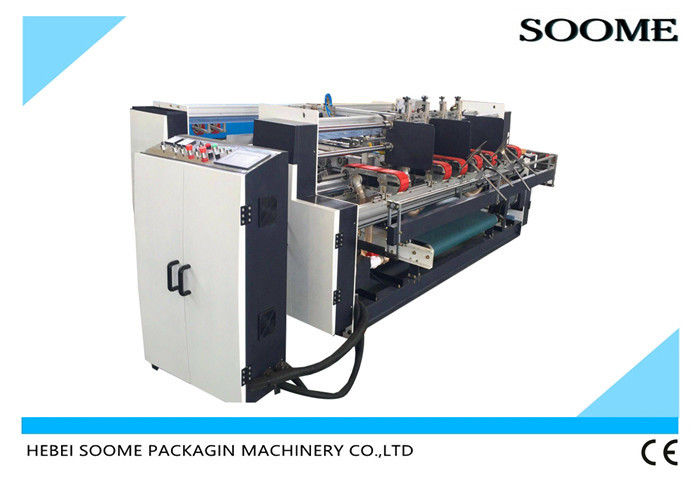

Semi Automatic Two Piece 8kw Corrugated Folder Gluer Machine

Semi-Automatic Two Piece Folder Gluer Carton Box Making Machine Factory



High speed semi automatic pasting box machine can be used for AA,AB two pieces or single piece carton box molding . This machine can replace manual gluing machine ,reduce the labour strength . Because of the automatically is high ,it is compared with traditional gluing carton box machine , Both reduce the manpower , and greatly improve the quality of products , and reduce the labour cost . The pressing and sticking department of this machine outputs finished carton box from the paper feeding end .one worker completes the paper feeding and collects the finished carton box , the another worker specially folds and corrects the carton box . So this machine only need two workers to compete the operation and reduce the area occupied of the equipment . Paper processing range : A-E corrugated flute



Equipment introduction:



1. The machine wall panel adopts 45# original flat 12mm high hardness steel plate and is processed by CNC surface grinder to ensure the precision of the work-piece; the main structure is connected by 140# I-beam, and the rest is connected by aluminum profile, thus ensuring the machine Stability; the sprocket is made of 45# material and then quenched by high frequency to extend its service life

2. The main motor power is 2.2KW, the pressing motor power is 550W, controlled by the inverter, and can be adjusted at will; the clamping is 2 sets of 1KW servo motor, the clamping length and speed can be adjusted arbitrarily, making the cardboard intermediate counterpart more accurate

3. The intermediate drive system is driven by a 2.2KW Mitsubishi geared motor, and there is also an electromagnetic clutch and electromagnetic brake as a backup drive



Technical index:



Parameter,specification	XS2000
Overall Size	3570×3100×1200mm
Max Size of Box	1000×900mm
Min Size of Box	450×320mm
Max Working Speed	50m/min
Power	10KW
Weight	2.5T
Power Supply	380V



Main Components Brand:



Components Name	Brand
Touch Screen	Taiwan Delta
PLC	Taiwan Delta
Inverter	Taiwan Delta
Media Relay	Schneider
Photoelectric Switch	OMRON
Approach Switch	OMRON
Switch Power	China
Relay	China
Cylinder	Taiwan
Contactor	Schneider
Button	China
Servo Motor



Functional features:



Front Feeding Part

1. Set two cardboard stacking parts to store two sheets of AB cardboard, which is beneficial to improve production efficiency;The following suction structure, two 3.0KW horizontal vortex suction pumps, greatly enhance the strength of suction, which is beneficial to Improve conveying accuracy and stability

Middle Part of the Paper Feeding

2. The butt joint is fixed and bonded by cold and heat. The hot melt adhesive plays a role in shaping,the cold glue acts as a bonding. It can be said to be double-bonded, which eliminates the opening of a single hot melt adhesive due to seasonal changes,the phenomenon that the glue and the food box burst into the cold storage hot melt adhesive; the four sides of the cardboard block are positioned, the positioning is accurate, and the precision is high

Rear Folding Part

3. Adopting manual folding, effectively solves the problem that the die-cutting indentation and corrugation position are not well determined, and the carton stick size is effectively controlled

4. This machine can be operated by two people:The first person is responsible for loading the paper and packing the sticky cardboard boxes.In the latter stage, one person is responsible for folding the cardboard into the press belt, which is easy to operate and easy to use.
