Place of Origin: | Heibei Province China |
Brand Name: | SOOME |
Certification: | CE Certification |
Model Number: | SMYS-QY-2600 |
Minimum Order Quantity: | 1set |
---|---|
Price: | negotiation |
Packaging Details: | wooden case with plastic film |
Delivery Time: | 35 days after deopist |
Payment Terms: | Western Union, T/T, L/C |
Supply Ability: | 50per/mounth |
Voltage: | 220V/380V/440V | Design Speed: | 150-180pcs/min |
---|---|---|---|
Warranty: | 1 Year | Power: | 37 Kw |
Driven Type: | Electric And Pneumatic | Automatic Grade: | Automatic |
Printing Precision: | ±0.5 | Max Feeding Size (L * W): | 928mmx2000mm |
Min Feeding Size (L * W): | 230mmx350mm | Max Printing Size (L * W): | 880*2000mm |
Highlight: | anilox roller 928 printer die cutter,lead edge feeder printer die cutter,928 express boxes printer die cutter |

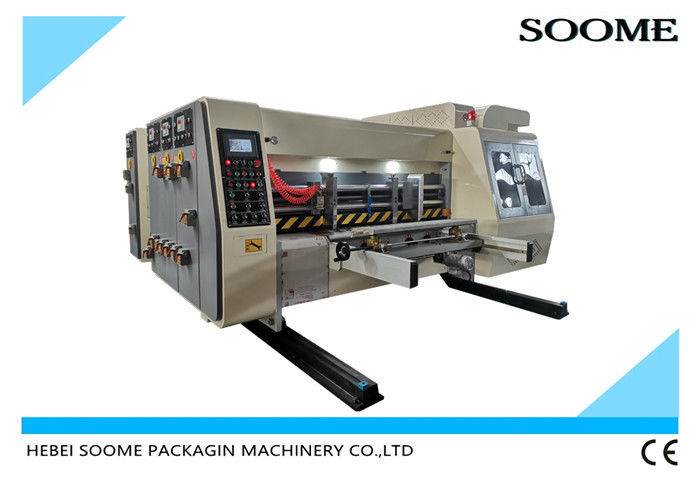

Anilox Roller 928Auto Lead Edge Feeder Printer Diecutter Express Boxes
Machine feature:
The main electric elements all adapt French Schneider brand. Name-brand PLC controlling, colorful touch screen , frequency converter.
The transmission gear adopt 40 Cr, 20GrMo Ti high quality alloy steel which is grinded, and after the heat treatment ,it can up to six grade precision.
The machine lubrication system uses an automatic spray lubrication, and with the device impermeable to oil spills institutions.
Each unit of the machine with electric separation, and pneumatic locking, pneumatic total lock, to ensure the stability of the unit, and continue ring for caution when machine be separated, to ensure the safety of operating person.
Every unit of machine with emergency stop switch, so the machine can be stopped between the unit, it can ensure the workers safe (remark: every unit moving is drag by feeder unit
Main parameter
Type | Unit | SMYS-928 |
Plate roller diameter | mm | ¢300 |
Inner width of machine | mm | 928*2000 |
Speed | pcs/min | 220 |
Max printing area | mm | 880*2000 |
Max feeding paper size | mm | 928×2000 |
Min feeding paper size | mm | 230×350 |
Board thickness | mm | 2-12 |
Print plate thickness | mm | 7.2 |
Print roller axle circle-oriented regulating | degree | 360°revolving |
Topping precision | mm | ±0.5 |
Printing unit:
1. Printing of high quality thick-walled seamless steel roll, surface conditioning, grinding, hard chromium plating.
2. All axes of roller correct by dynamic balance, the machinery running steady.
3. Handling print, the foot switch is convenient and flexible electric control reversing.
4. Printing , roller clearance adjusted by hand, the scale panel shows the data.
5. Printing phase fixed device, using pneumatic brake mechanism. While the machine separates or the phase is adjusting, the brakes can restrict the revolving of the machine platform and keep the fixed point of original gears position.
6. roller diameter Φ300mm, diameter with printing plate Φ312mm, adopt high quality thick seamless steel pipe, with surface grinding, hard chrome plating.
7. Use famous Dalian Tengda anilox roller, high quality steel, mesh is 220LPI or 250LPI as per customer need.
Rubber roller adopt high quality wear / oil and acid-base resisting, medium height grinding, better ink distribution effect.
8. The printing roller pressure adopt high precision crosshead shoe gapless adjustment to do micro adjustment, can make the printing pressure reach the best condition.
Soltting die cutting unit:
1. The function of the double shaft slotting unit (adopt units). Big size carton box or kicking paperboard slotting can save loading knife time.
2. Slotting phase and the height carton box adjusting, computer and the electrical number can be controlled.
3. Slotting knife with a move transversely structure, screw with linear axis that mobile more flexible and accurate.
4. The up and down knife move at the same time, keep the linkage of knives, accurate, extend the service life tools.
5. Slotting knife shaft space, computers and digital electronic adjustment automatically.
6. The slotting knife move transversely with double prevent collision protection device (electronic and mechanical).
7. Elastic and corner cutting blade structure, three and five layers board corner cutting no adjustment and operation more convenient.
8. Line wheel, slotting knife move transversely adjustment, computer and electric control.
9. Creasing gap adjusting with computer and digital electronic control (choose configuration).
Training how to instal the machine, training how to use the machine.
Engineers available to service machinery overseas.
Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q2. What is your terms of delivery?
A: DHL, TNT USP etc.
Q3. How about your delivery time?
A: Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to 15 days.
Generally speaking, all of the goods can be reach your address within 4 weeks.
Q4. Can you produce according to the samples?
A:Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5. What is your sample policy?
A: e can supply the sample , but the customers have to pay the sample cost and the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
