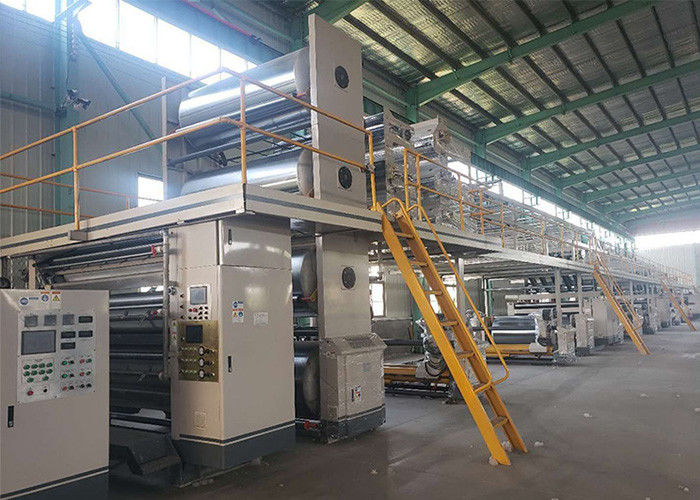

2.2m Width Computer Controlled Corrugated Cardboard Production Line

specification

Equipment name

UN IT

QT Y

ZJ-V6B

Hydraulic shaftless mill roll

stand

a

7

12

YXC

Hydraulic pressurePap er system

a

14

5

Double groove width 10m. guide rail length and the ground level, on the double position paper design, hydraulic clamp for paper, paper unloading hydraulic push rod save manpower, hydraulic motor traction

feeding trolley.

JZJ

Automatic splicer

a

7

19

Automatic splicer keep corrugating cardboard assembly line uninterrupted work,Reduce paper consumption,Greatly improve productivity.Maximum

speed 250m/min

RG-1-1000

a

3

7.5

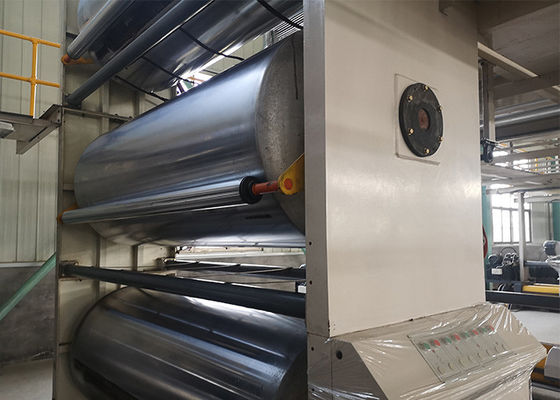

roller ￠1000mm,including pressure container certificate.Electric adjustment wrap angle.Wrap angle can adjust the paper preheat area in the range of

360°.

RG-1-1000

a

3

7.5

roller ￠1000mm,including pressure container certificate.Electric adjustment wrap angle.Wrap angle can adjust the paper preheat area in the range of

360°.

SF-500A

Multi-casset te positive pressure single facer

a

3

166

Main corrugating roller ￠500mm,corrugating roller group flute quick change.corrugated roller with spraying tungsten carbide dealing.with

maintenance-free airbag loading,PLC automatic control glue, HMI touch screen, Breaks automatic

parking relief.

DY-C

Electric hydraulic roller change

forklift

set

1

4.7

Large capacity battery, power walking, hydraulic lift, centralized control.

RG-4-1060

Triple preheater

a

1

30

roller ￠1060mm,including pressure container certificate.Electric adjustment wrap angle.Wrap angle can adjust the paper preheat area in the range of

360°.

GM-30

Double glue machine

(heavy

type)

a

1

45

Glue roller diameter 320mm.Frequency motor drive, PLC control. Glue quantity PCL automatic adjustment,HMI touch screen display.

TQ-I

set

1

51

200mm main beam channels, independent inverter motor drive pull paper feed, adsorption

tension.Electric correction.

XG-JP

Automatic correction

set

１

28

No power correction model save energy.High precision sheet correction. Paper width change does not require any adjustment

Full width infrared detection curtain.Reduce paper

waste generated tear.reduce the waste of paper edge not to precision.

DQD

set

1

40

Cut off bad cardboard when start working, when slit

change order cut the sides automatically,make the waste come into the suction opening automatically.

SM-E2

Double facer

set

1

130

Rack 400 mm GB channel,Chrome hot plate600 mm

*20pieces,Entrance ¢ 400mm hot cylinder of top paper speed raised temperature,16groups whole contact plate design construction.PLC automatic control press plate.Up and down with automatic correction, temperature display, frequency motor.Adopt PID automatic temperature control system, link with raw pipe three layers, five layers automatically control the number of temperature hot plates, high

efficiency and energy saving

NCBD

NC thin blade slitter scorer

a

2

60

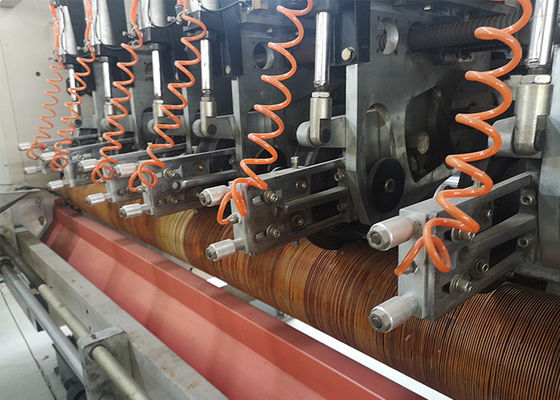

Tungsten alloy steel, seven knives twelve lines, zero-pressure line type. Schneider servo computer automatically discharge knife, suction outlet width automatically adjusted.Closed electric control box,

plus air conditioning dehumidification

NC-30D

a

1

140

Full AC servo control, energy storage brake, helical blade structure, oil-immersed gears,10.4-inch touch screen display.Closed electric control box, plus air

conditioning dehumidification

NC-DL

Double Automatic large down stacking

machine

a

1

144
