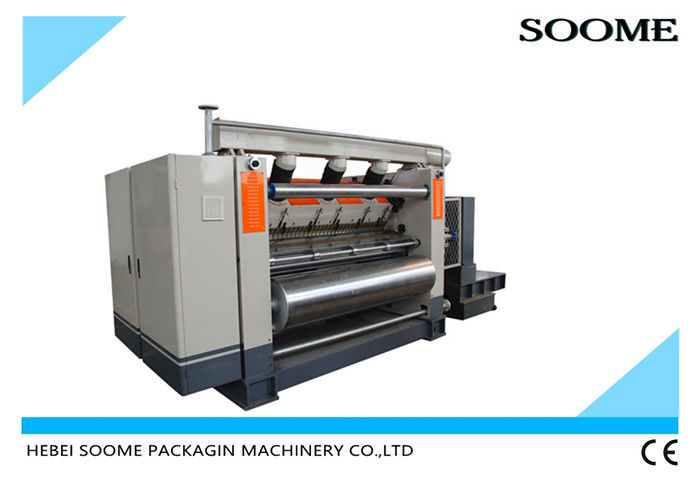

405C1 Fingerless Single Facer Corrugated Machine With Corrugated Roller

405C1 Fingerless Single Facer Corrugated Machine With Corrugated Roller

Model no: 405C1(360C1) adsorption single surface corrugating machine

1. Design speed of 405C1: 220m/min; design speed of 360C1: 200m/min

2. Effective width: 1400mm~2500mm

3. Corrugated roller 405mm 360mm

4. vacuum adsorption single-sided machine, the upper and lower corrugated roller using high quality 48crmo, heat treatment hardness HV1200 above, the surface by grinding tungsten carbide treatment.

5. The machine is equipped with top paper preheating roller and core paper tempering and tempering air injection device.

6. The upper and lower corrugated roller seat is designed separately from the whole machine, which can be hoisted and replaced for easy disassembly.

7. The rubber cloth is separated along the guide rail for easy cleaning and maintenance.

8. Pressure roller clearance is detected and displayed by pressure sensor.

9. Automatic adjustment of glue gap with production speed.

10. When the machine is stopped, the pressure roller is lifted. The pressure roller is driven by pneumatic and rotates intermittently.

11. Toothed belt transmission is adopted to reduce noise and maintenance cost.

12. adopt electric glue separation device, the adhesive cloth can operate independently when the host machine stops, to prevent paste drying up, and adjust the amount of digital glue by electric.

Main Features:

1. Simple structure in linear type ,easy in installation and maintation.

2. Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3. Running in a high automatization and intellectualization,no pollution



Glue Rollers:



Diameter	Φ242mm
Processing Way	Surface of glue roller is grinded, then with 25 line rut type net dot,then plating chrome Surface of glue banlance roller is grinded then plating chrome
Control Way	Penumatic cylinder control of the Lifting Up-down
Glue Supply	Glue circulating system(storage tank+glue pump)



Corrugated Rollers:



Diameter	Down Roller:Φ320mm
Material	48CrMo high quality alloy steel, rigidity HRC55°-58°
Processing Way	The surface of upper-lower roller is plating chrome, annealing, hardening and tempering, surface grinded
Fulte Type	(U/V) ACBEF
Material band or origin	Henan Jiyuan Iron & Steel Steel
Heating way of the reel paper	Steam heating



Press Rollers:



Diameter	Φ324mm
Material	medium steel (MS)45#
Processing Way	The surface is grinded then plating chrome, hardening and tempering(With Buffer)
Control Way	Penumatic cylinder control of the Lifting Up-down
Material band or origin	Zhong Yuan Special Steel



Preheater Rollers:



Diameter	UP Roller:Φ400mm
Material	seamless steel tube
Material band or origin	Tianjin Iron & Steel
All connected by flexible metallic tubes



Common Spec:



Width of Paper	1600mm/1800mm
Style of Transmit cardboard	Vacuum Cover adsorbable style, Hight pressure Draw fan.with wind control Adjusting & noise deadening device.
Style of Control Roller	Pneumatic control the upper roller, pressure roller and glue roller
Lubrication	Anti-high temperature lube to lubricate the Corrugated Roller and Press Roller’s gears
Driving Way:With frequency inverter
Wallboard & machine stand: cast iron,thickness:200mm



Common:



Working width: 1600mm/1800mm

Operation Direction: Left or right (decided by the workshop of customer)

Design Speed: 150m/min

Temperature: 160—210℃

Air pressure: 1.0—1.3Mpa

Corrugated Flute Type: UV or UVV



Spec of Motor:



Main Motor: 7.5kw Nominal voltage: 380V 50Hz Continuous (S1) working Type

Fan Motor: 7.5kw Nominal voltage: 380V 50Hz Continuous (S1) working Type
