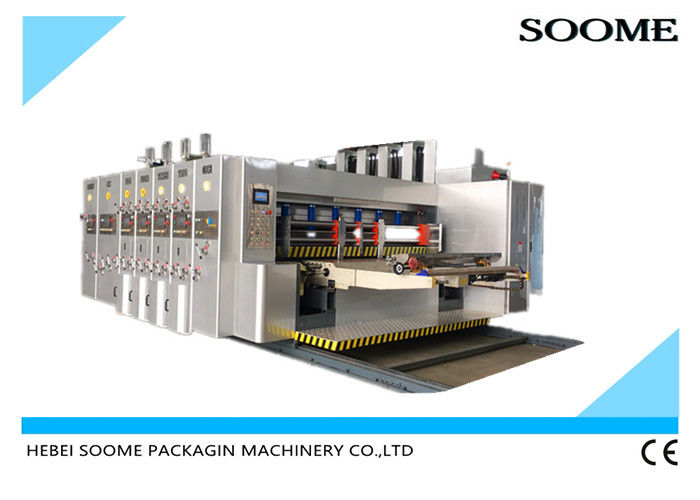

22kw Corrugated Carton Flexo Printing Machine Printing Precision ±0. 5 Mm

22kw Corrugated Carton Flexo Printing Machine Printing Precision ±0. 5 Mm

Whole Machine introduction:



1. The whole machine is designed according to high specification. It is based on human and machine consistent principle, It is easy operation and convenient maintain and long life. It is a cost-effective product with multi-protect function

2. Make machine and human conversation by touch screen and retain electrical control system. It is return-zero automatically and reset automatic and store order.

3. Human control machine by computer. PLC controller. Frequency inverter all choose famous brand from all over the world.

4. Main driving gear material adopts excellent alloy steel (20CrMnTi) processing, by many ways process to be a shaped. Hardness of gear surface after fine grinding and high frequency quenching can up to HRC-60 to ensure transmission perfectly for a long time.

5. All spare parts like rollers and shafts is heavy-matched test by static and dynamic balance. Ensure stable and reliable when high speed working . Roller surface is hard chrome plating protective layer .

6. All rollers adopts keyless connect to avoid gap from transmission connection and keep good printing chromatograph.

7. Transmission lubricating system adopts spray splash-avoiding advice and cycling automatically.

8. Vacuum adsorption feeding to avoid feeding roller wheel damage pattern on printing plate and ensure exact accurate overprint.

9. You can sealed chamber with double knife system



Advantage:



1. Lead edge type paper feeding system, induced draft assisted paper feeding. It equips with fan. It can make adjustment according to paperboard condition to make it smooth.(value adjusts wind capacity)

2. Skip paper feeding device.(continuous paper feeding and skip paper feeding is optional)

3. Paper supply counter set to indicate the production quantity.

4. It equips with dust-extraction unit to eliminate the dust to improve the printing quality.

5. Paper feeding up roller wrapped with endured rubber and make a balance to avoid the damage to corrugated paperboard.

6. Down paper feeding roller is hard chromed.

7. Paper feeding interval is adjusted by hand. The dial indicates the data.



Printing uint:



1. Phase 360 ° electrical adjustment (planetary gear).

2. Roller axial position is adjust electrically and manually, left and right movement 10 mm.

3. Excellent metal anilox roller made by professional manufacture.

4. Rubber roller made by professional manufacturer and ensure ink quality.

5. Supply ink cycling pneumatically.

6. You can choose ceramic roller.

7. Whole roller with hang lath which is standard.



Slotting department:



1. The phase is 360 ° adjusted by electric planet gears.

2. The height of carton is adjusted by electric internal-tooth structure.

3. The polyurethane precompression wheel, guaranteed that the cardboard is not crushed.

4. The width and length of carton are adjusted electrically and synchronously.

5. Obverse and inverse knifves are alternative.

6. The match hits buckles the hand installment, function and so on order form management

7. Axial position cycling moving automatically

8. Choose excellent durable rubber imported from taiwan.

9. With repair -auto rubber device.

10. Track and compensate after lower and upper roller repair.

11. Slotting slitting knife is special designed and installed on special fixtures, four blade can sync adjust box height. Load and install is    convenient and it can replace rotary slotting machine, blade incision is smooth.

12.Die-cutter roller lift pneumatically and make rubber good when idling and phase adjustment to save cost.

13. Rubber shaft axial moving 40mm automatically. Creasing not repeat and improve rubber using life.

14. Rubber shaft with repair device auto and can repair 3-4 times.



Tecnical index:



Item		400type
Wallboard medial width		50mm
The diameter of the roller		400 mm
Max feeding paperboard size		1200*2600mm
Max effective printing size		1200*2400 mm
Min paperboard size		350mm * 650 mm
Thickness of the printing plate		7.2 mm
Max design speed		180pieces / min
Working speed		160 pieces / min
Precision of the printing		±0. 5 mm
Printing rolling axle circle-oriented regulating		360 degree revolving
Printing rolling axle-oriented regulating		+/-10mm
