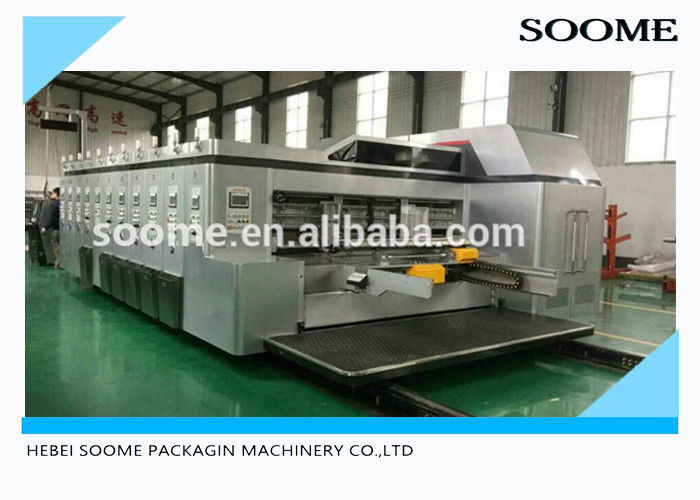

Oil Coating Printing Slotting Die Cutting Machine 5 Color Printing Machine
|
Specification/
Max feeding size(mm)
|
1800/2000*800 |
1800/2200*1000 |
2500*1200/1400/1600 |
2800*1200/1400/1600 |
3200*1600 |
| Max speed (pcs/min) |
250 |
200 |
160/150/120 |
150/140/120 |
120 |
| Min feeding size(mm) |
650*270 |
650*270 |
650*330/350/400 |
650*330/350/400 |
650*400 |
| Skip feeding size(mm) |
1800/2000*1000 |
1800/2200*1200 |
2500*1400/1600/1800 |
2800*1400/1600/1800 |
3200*1800 |
| Cardboard Thickness |
2-10 |
2-10 |
2-12 |
2-12 |
2-12 |
| Max. printing size(mm) |
1750/1950*750 |
1750/2150*950 |
2450*1180/1330/1580 |
2750*1180/1330/1580 |
3150*1580 |
| Print plate depth (mm) |
7.2 |
|
Min slot
(mm)
|
Positive cut |
120*120*120*120 |
120*120*120*120 |
140*140*140*140 |
140*140*140*140 |
140*140*140*140 |
| Reverse cut |
200*80*200*80 |
200*80*200*80 |
240*70*240*70 |
240*70*240*70 |
240*70*240*70 |
| Max die cutter area(mm) |
1700/1900*750 |
1700/2100*930 |
2400*1150/1310/1550 |
2700*1150/1310/1550 |
3100*1550 |
General Features:
► The whole machine is designed and made according to high
requirements with reliable and safety function;allows quick order
changing and user friendly operation;
► Select the excellent materials and parts,all orders are made of the fine
steel,with chrome plating and harden treatment;
► Driving gears are imported products,its grinding hardness is above 60
degrees;
► Adopted joint ring-free technology,to reduce abrasion and achieve
precise printing result;
► With automatic zero setting and reset function;
► Adopted gear lubricant auto self-balance device,to keep the lubricant
levels in each unit uniform at all times;
► Each working unit is motorized for open and close actions,with
warning alarm system to ensure safety;
► The distance adjustment of the feeding roll,press roll,and netted roll are
achieved by electric control;
Complete machine group
Computer Control system.
7” HMI (display) interface.
999 orders memory capacity.
Intelligent Auto zeroing function on each unit.
Diagram display, numerical key-in and easy order operation environment.
► Multiple function control with touch screen and PLC of all the gaps: gaps between feeding roller, anilox roller, rubber roller, pressing printing roller, slotter knives lengways and transverse adjustment. Reliable system, low failure rate, simple operation.
► This machine with the function of automatic zero, auto version adjustment, memory recovery, paper skip feeding, auto lifting & falling edition, etc.
► Machine clutch controlled by electric, set with alarm bell.
► Pneumatic interlocking device.
► Close loop control system between Ink system and Anilox/down and Feeder unit.
► Motorized all units- Registration of feeder, printers, slotter.
► Motorized control of the movement of Unit On-Off. For safety an audible alarm sounds while the units moving.
► Main motor is controlled by variable frequency converter, power saving, low noise.
► Power supply: 380 V / 50HZ / 3PH
► All steel shafts and rolls made of quality steel pipe, precisely ground and surface chrome plated, running stably.
