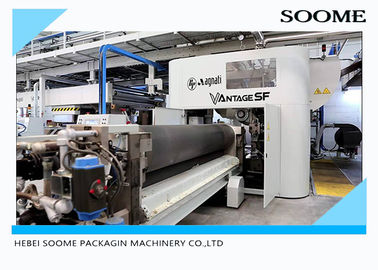

Micro Corrugated Cardboard Cardboard Production Line Cardboard Box Manufacturing Equipment
Parameter:
| Max. Working Width |
2200mm |
| Min. Working Width |
900mm |
| Max. Paper Mill Dia |
1500mm |
| Main Shaft Dia |
Φ242mm |
| Max. Working Pneumatic Pressure |
0.6-0.9Mpa |
| Max. Supporting Weight (One side) |
3T |
| Pneumatic Source Pressure(Mpa) |
0.4---0.8Mpa |
Configuration
Mill roll stand
Hydraulic Mill roll stand
Single facer
Cassette Single facer
Surface paper pre-heater
Core paper heater
Three layer pre-heater
Two layers pasting machine
Pasting glue machine
Two layers over bridge conveyor
Two layers over bridge conveyor,GQ3-2500, the lifting department adopts independent variable frequency motor to drive , it is automatic synchronous running. automatic adjust the upper , middle and the downer paperboard neatly . It adopts absorption tension control , variable frequency motor to adjust the quantity of the wind.
Double facer
Double-facer machine SM2-2500 type, 18pieces of hot plates, surface of it adopts grinding. It adopts concentrated pressing roller to make sure of the moulding quality. It is automatic hydraulic up and down, the pressure can be adjusted in three parts with the pneumatic adjustment.
Main drive unit
Heavy type main drive
Slitter machine
The NC slitter scores machine
Pneumatic transmit paper frame
GZJ-2500 Pneumatic transmit paper frame,automatically transmit the paper after slitter scorer machine to cut off machine by up and down layers
Double Layers Computer Rotary Cutting Off Machine
Double Layers Computer Rotary Cutting Off Machine
Double Layers Computer Counting Stacker
Double Layers Computer Counting Stacker.Sheets stacking table is controlled segmented pneumatic, sheets baffle is adjusted automatically to adapt the length of sheets. Counting, transporting, stacking are controlled by PLC system, max length of sheets are 3000mm.
The steam system
The steam system, each unit is designed as a independent unit to supply the steam , independent straight transmit water. The steam pipe and the rotary heating connector adopt flexible metal tube to connect. The machine is equipped with pressure monitoring table.
Glue making system
The glue circular system (the main glue barrel, the carrier glue barrel and glue storage barrel is one set. the main glue barrel adopts electromagnetic motor to control. The single facer and the pasting glue machine adopts independent glue barrel .
Air compression system
The electric system
The electric control system , part of the component adopts Schneider, Delta Taiwan, Fatek Taiwan and the other famous brand product, PLC to control , the touching screen to show the data and control.
Trolley and rail
SZ-2500 trolley and rail, the rail is 6 meters length.
